S – support nets

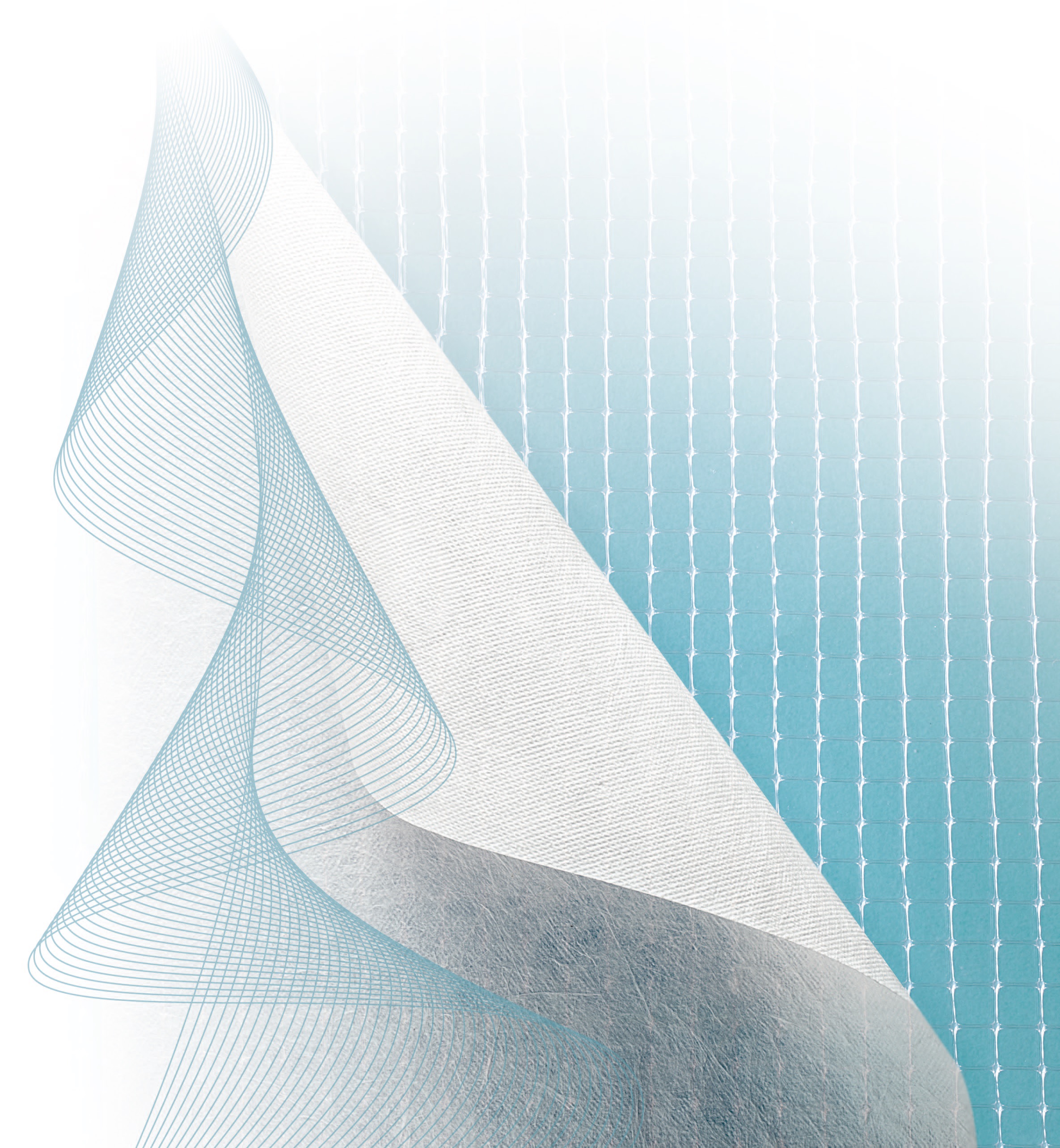

Bi-oriented polypropylene netting with high tensile resistance

S – support nets
Bi-oriented polypropylene netting with high tensile resistance
  • PRODUCTS
  • ADVANTAGES

Physical & mechanical features

  • Maximum width: 4,20 m
  • Min. working temperature: -20°C
  • Max. working temperature: +120°C
  • Color: clear/ customized
  • Mesh: square
  • Min. weight: 8 g/m2
  • Resistance: up to 6 kN/m
Maglia-orientata

PP bi-oriented nettings

NAME WEIGHT [g/m2] MESH MD/TD [mm] RESISTANCE MD/TD [kN/m]
S 40 8,0 12,7 x 12,7 0,85 x 0,85
S 31 14,0 16,0 x 19,0 1,0 x 1,0
S 25 28,0 12,0 x 12,0 2,2 x 2,2
S 5 30,0 15,0 x 18,0 2,3 x 2,6
S 44 33,0 6,8 x 7,0 2,5 x 3,0
S 17 35,0 12,0 x 12,0 2,7 x 3,5
S 11 40,0 6,0 x 6,5 2,5 x 2,0
S 12 55,0 4,0 x 4,0 2,7 x 2,7
S 35 100,0 12,0 x 12,0 1,8 x 6,5
ARMAFLEX 100,0 13,0 x 16,5 4,5 x 6,0

Advantages

  • Resistant
  • Recyclable
  • Icona inceneribile
    Incinerable
