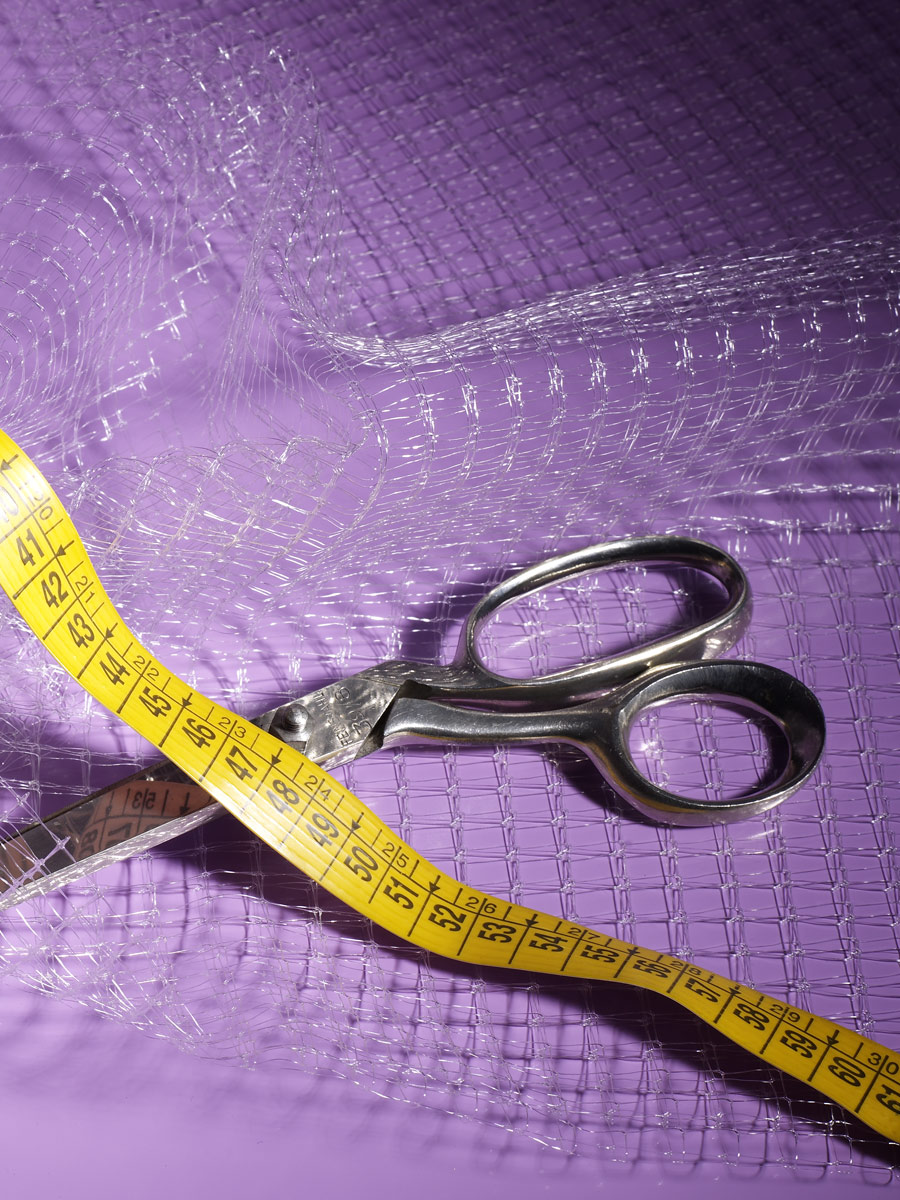

R – reinforcement nets
Polypropylene oriented light nettings with low thickness
R – reinforcement nets
Polypropylene oriented light nettings with low thickness
-
PRODUCTS
-
ADVANTAGES
Physical & mechanical features
- Maximum width: 6,00 m
- Minimum thickness: 0,23 mm
- Maximum thickness: 0,70 mm
- Working min. Temperature: -20°C
- Working max. Temperature: +120°C
- Color: clear/ customized
- Mesh: square
- Minimum weight: 5 g/m2
PP bi-oriented nettings
| NAME | WEIGHT [g/m2] | MESH MD/TD [mm] | RESISTANCE MD/TD [kN/m] |
|---|---|---|---|
| R 16-T | 5,4 | 8,0 x 12,0 | 0,5 x 0,7 |
| R 11 | 5,7 | 8,0 x 10,0 | 0,5 x 0,7 |
| R 24 | 5,7 | 6,5 x 6,5 | 0,5 x 0,7 |
| R 17 | 8,0 | 12,7 x 12,7 | 0,6 x 0,75 |
| R 12 | 12,0 | 10,0 x 12,0 | 1,0 x 1,2 |
| R 22 | 10,0 | 4,1 x 4,3 | 0,9 x 1,2 |
| R 18 | 15,0 | 12,7 x 12,7 | 1,0 x 1,5 |
| R 9 | 35,0 | 7,0 x 9,0 | 2,2 x 3,4 |
Advantages
-
Resistant -
Recyclable -
Incinerable
